Design features
HHSJ series of nozzle is a kind of solid conical spray nozzle and jet Angle 60 °, 170 °.
This compact nozzle can make the liquid in a given size to achieve maximum flow in the pipeline, open channel design to minimize the phenomenon of blocking.This kind of nozzle can install or update on most of the pipeline system.Can provide the nozzle of the NPT or BSPT thread type (outside).

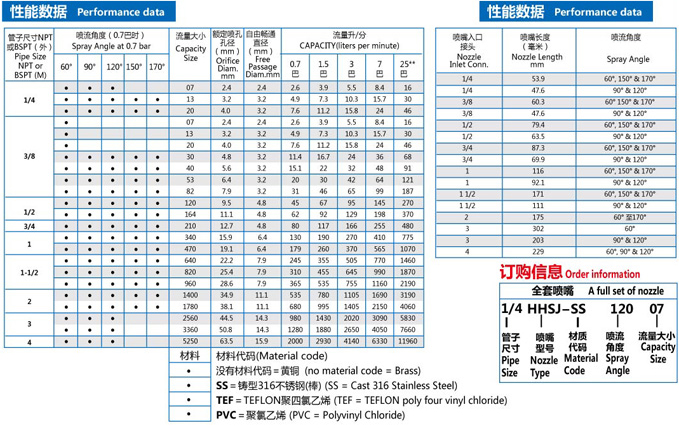

At 3 bar pressure, flow rate of 5.5 to 4140 litres per minute.
The nozzle also can use other materials, used in special fields.
General purpose
Low aeration
Low chemical processing
Low fire, the fire fighting
Low scrubbing, cooling
When cleaning, flushing
